Specifications
| Manufacturer | Color Palette |
|---|---|
| agb | Chrome |
Product Description

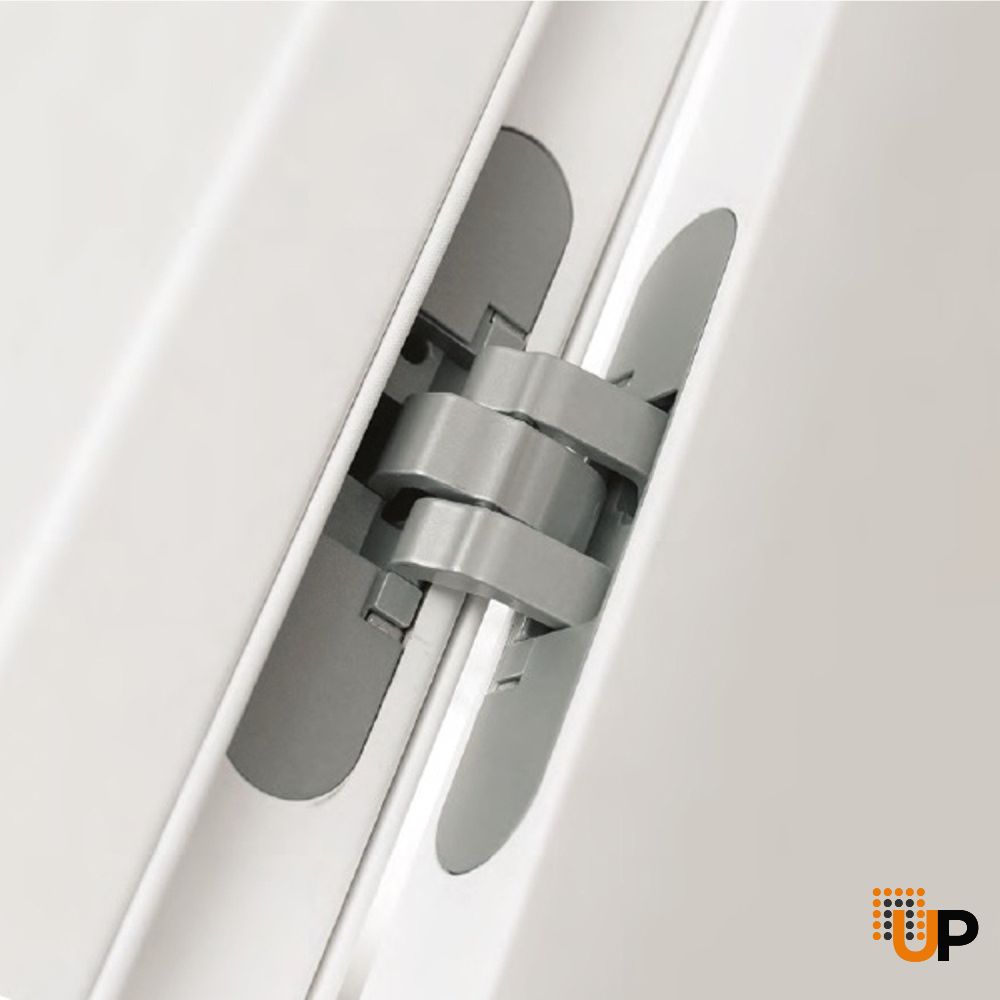

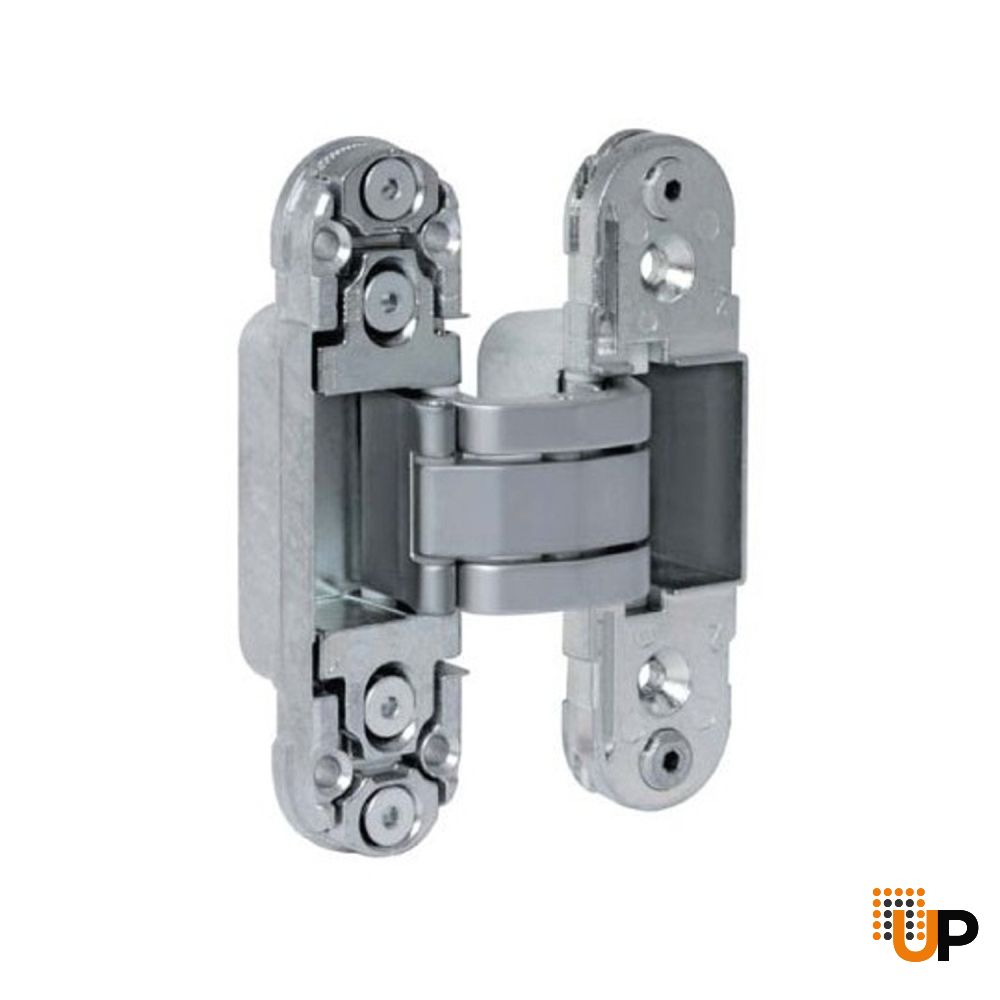

The AGB Concealed Hinges offer a superior solution for your door installation needs. With their reversible design and adjustable features on three axes, these hinges provide unparalleled versatility and functionality. They are specifically designed for flush doors with a thickness ranging from 40 mm (1 9/16″) to 44 mm (1 3/4″), making them ideal for a wide range of applications.
One of the key features of these hinges is their impressive opening capacity of up to 180°, allowing for full access and convenience when opening your doors. With two hinges, they can support a weight of up to 40 kg, and with three hinges, the weight capacity increases to 60 kg, ensuring stability and durability.

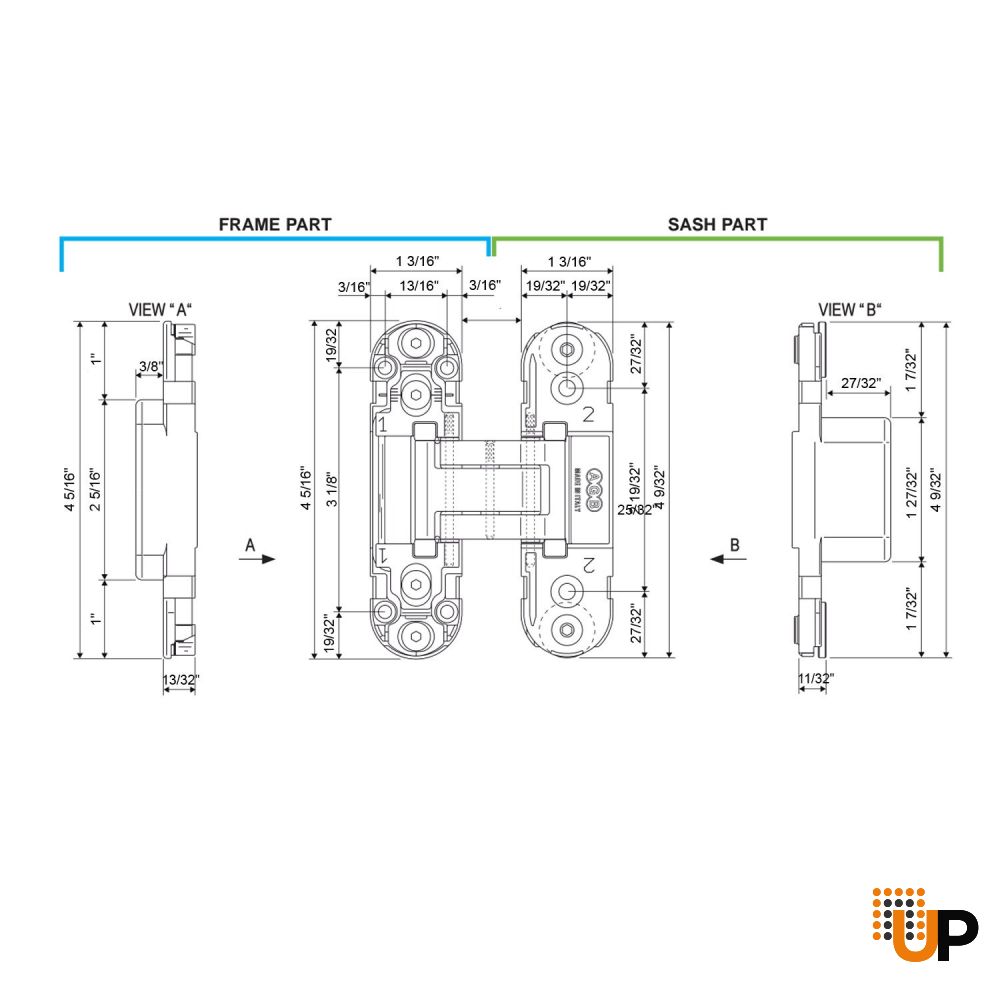

To facilitate installation, the hinges come with pre-drilled holes and set millings on both the sash and frame parts. The drilling diagram provides clear instructions for achieving precise alignment. The hinge is securely fastened using 5×40 mm (3/16″x19/32″) screws for the sash part and 4×25 mm (5/32″x1″) screws for the frame part.
In addition to their practicality, these concealed hinges offer a sleek and refined aesthetic. They are compatible with telescopic cover plates, with a frame part that accommodates a 20 mm (25/32″) milling depth. This ensures that the hinges remain invisible from the outside, enhancing the overall design of your doors.
The symmetrical milling of the hinges enables door reversibility, allowing you to choose the door side on-site during installation. This flexibility ensures that the hinges can adapt to various door configurations, meeting your specific requirements with ease.
The installation process is straightforward and efficient. The sash part and frame part can be installed separately during production, making it convenient for transportation and handling. They can then be effortlessly joined on-site, streamlining the overall installation process.
To maintain a clean and elegant appearance, the covers of the hinges conceal the adjustment screws. Even when the sash is open, the hinges retain their refined aesthetics, contributing to a visually pleasing door design.
The hinges offer three independent adjustment options, allowing for precise fine-tuning. The first adjustment enables pressure adjustment with a range of ±1 mm (1/32″). The second adjustment allows for vertical alignment with a range of ±2 mm (3/32″). The third adjustment provides horizontal alignment with a range of ±1.5 mm (1/16″). These independent adjustments ensure optimal functionality and ensure that your doors are perfectly aligned and operating smoothly.
In summary, the AGB Concealed Hinges are a reliable and versatile choice for flush doors. With their reversible design, adjustable features, and easy installation process, they offer both practicality and elegance. Whether you’re a professional installer or a homeowner looking to enhance your doors, these hinges provide the perfect solution for your needs.
